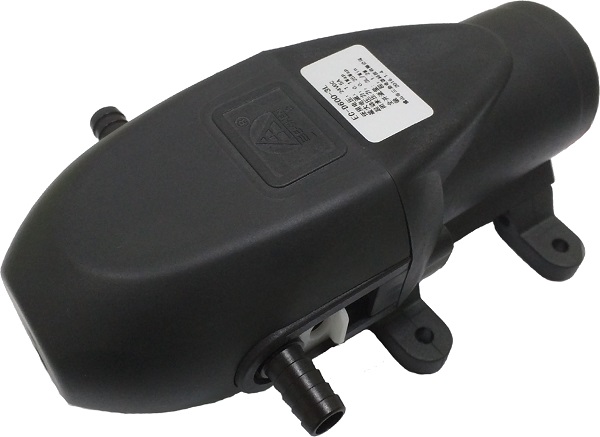

EC-D600
For Vending Machine
Product brief:
-
Specifications
- Voltage:24VDC (12VDC available)
- Port:Plug-in quick connector
- Inlet Pressure:0 psi
- Pressure Switch:35psi Off (Adjustable 0-7psi)
- Open Flow: 3.0 LPM
- Max Current:≦ 1.0 A
- Weight:0.73kg
- Dimensions:166x81x74mm
Performance Curve Chart
-
EC-D600-3L
Specifications
- Voltage:24VDC (12VDC available)
- Port:Plug-in quick connector
- Inlet Pressure:0 psi
- Pressure Switch:35psi Off (Adjustable 0-7psi)
- Open Flow: 3.0 LPM
- Max Current:≦ 1.0 A
- Weight:0.73kg
- Dimensions:166x81x74mm
Performance Curve Chart
Features
- Diaphragm Pump
- Food Grade
- Built-In Pressure Switch
- Self-Priming
- Patented Core Technology
- Low Noise
- No Decompression
- No Water Leakage
- High efficiency
Materials
- Nylon Housing
- EPDM Valves
- Santoprene Diaphragm
- 304 Stainless Steel Fasteners
Applications
- Pre-Filter Water Treatment
- Water Vendor Machine
